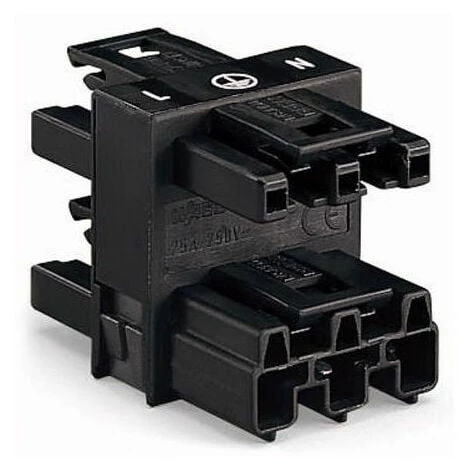

Connecteur Distribution Wago 3 Voies 1 Entrée Femelle Et 3 Sorties Mâle Noir

Caractéristiques

• Section des fils max.: 4

Code ErreBi: 50445
Code Producteur: 770-607
Producteur: Wago
Vendu au pièce

All installation connectors (snap-in snap-in versions for luminaires, devices or printed circuit boards and distribution cabinets) are equipped with locking levers to ensure secure clamping of sockets and plugs. The additional locking levers are only used for “flying leads” (plug / socket).

All WINSTA® components are 100% protected against reverse polarity preventing:
a.) the grafting of different numbers of poles
b.) the graft with 180 ° inversion
c.) the graft with lateral offset
d.) the implantation of a pole

Ratings for IEC / EN 60664-1
– Rating for: IEC / EN 60664-1
– Rated voltage (III / 3): 250 V
– Rated impulse voltage (III / 3): 4 kV
– Rated current: 25A
– Key (rating): (III / 3) Overvoltage category III / degree of emissions 3

Approvals for UL 1977
– Rated voltage according to UL 1977 (factory wiring only): 600 V
– Rated current according to UL 1977 (factory wiring only): 23 A

Connection data
– No. of poles: 3
– Total number of potentials: 3
– Mass function: with preceding GND contact

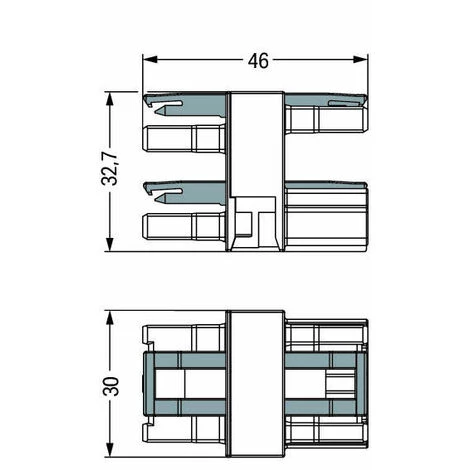

Geometric data
– Pin spacing: 10 mm / 0.394 inch
– Width: 30 mm / 1.181 inch
– Height: 32.7 mm / 1.287 inch
– Depth: 46 mm / 1.811 inch

Mechanical data
– Coding: A
– Coupling force of a push-in connection: approx. 20… 70 N (depending on pole number)
– Retention force of a push-in connection: when locked:> 80 N
– Disconnection force of a plug connection: Unlocked: approx. 20… 70 N (depending on pole number)
– Number of insertion cycles: 200, without resistive load / 100, with resistive load IN = 25 A, tested (4 mm² / AWG 12)
– Distribution connector type: Distribution connector, 3-way
– Degree of protection: IP20
– Security Type Note: Only in mated condition (These compact connectors are not designed for use in open, easily accessible areas.)
– Application: General mains applications

Plug connection
– Contact type (plug connector): gniazdo / wtyczka
– Reverse polarity protection: Yes
– Locking of the plug connection: locking lever
– Locking lever: yes

Material data
– Black colour
– Insulating material: Polyamide (PA66)
– Contact material: Surface treated with copper or copper alloy
– Fire load: 0.423 MJ
– Weight: 25.1 g

Environmental conditions
– Processing temperature: -5… +40 ° C
– Continuous operating temperature: -35… +85 ° C
– Note on permanent service temperature: Insulating parts for temperatures = 105 ° C

Scheda Tecnica

Intensité de courant: 25A
Matériel: PA66 (Polyamide 66, Nylon 66)
Couleur: Noir
Température de fonctionnement: -35°C à +85°C
Dimensions: 46,00×30,00×32,70 (L x W x H)
Voltage: 250V
Matériel de contact: Alliage de cuivre
Montage: Sur panneau
Genre: Mâle + Femelle
Nombre de pôles: 3
Nombre de rangées: 1
Pas: 10.00 mm
Orientation: 180°
Type de produit: Connecteur
